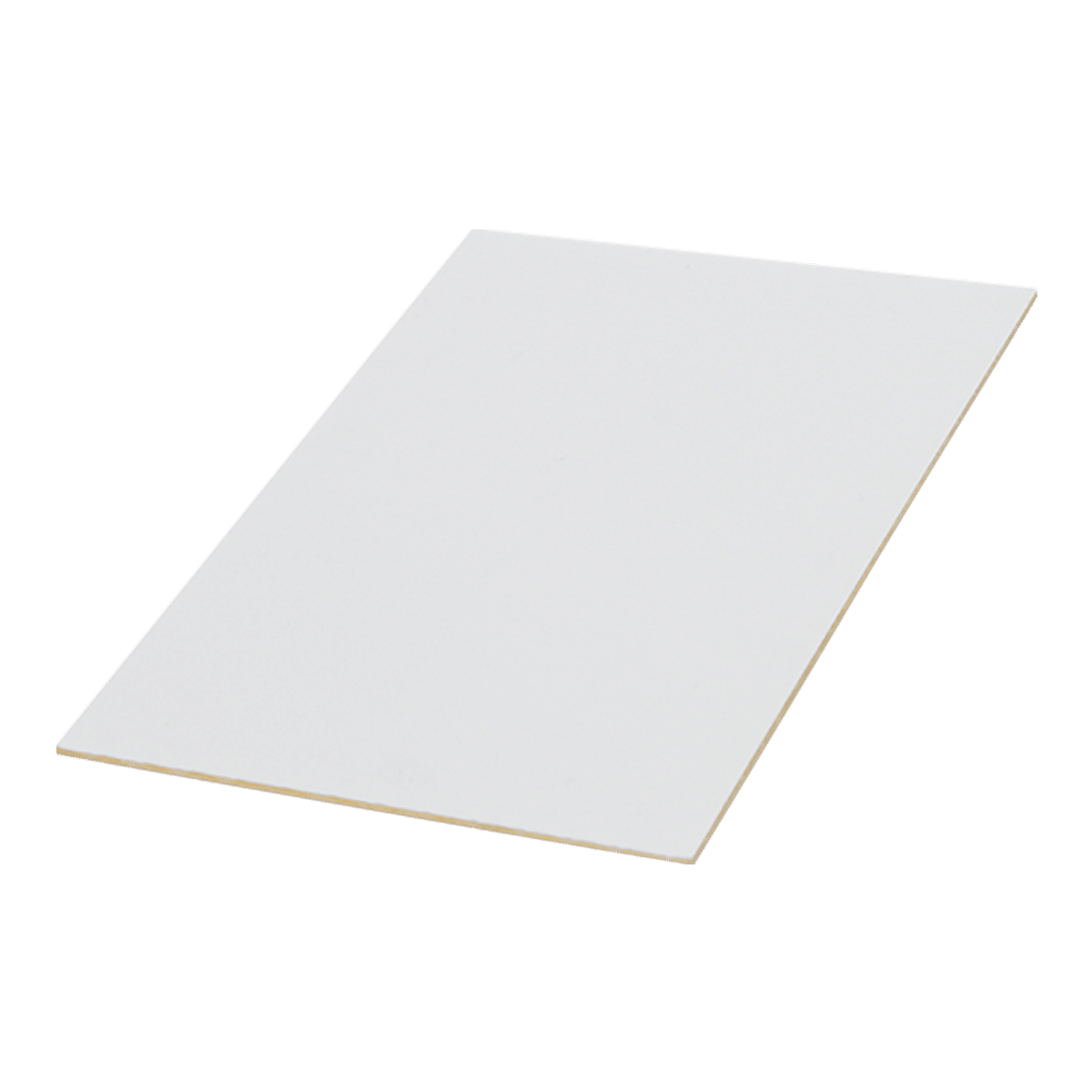

Gillfab® 1367G is an ultra-light weight, high strength, low FST liner constructed fromwoven S-glass cloth with a modified phenolic resin system and a 1 mil white polyvinyl fluoride film overlay on the face side. Gillfab® 1367G is an alternative toother Gillfab® 1367 series for aircraft cargo liners which maximizes weight savings.
用于货舱的货物衬里、舱壁饰面和飞机的防爆板。
| 厚度，英寸（毫米） | 0.007 (0.178) | 0.027 (0.686) |
| 长度，英寸（毫米） | 标准 144 (3,658) | 最多 168 (4,267) |
| 宽度，英寸（毫米） | 标准 48 (1,219) | 最多 60 (1,524) |
| 双方 | 标准 | |
|---|---|---|
| 颜色 | 面侧 | 1百万白色PVF薄膜 |
| 背面 | 琥珀色 |
加强： 机织玻璃纤维布
树脂系统： 酚醛树脂
表面处理： 1 mil 白色 PVF 薄膜覆盖层
| 规格名称 | 先前资格 | 现有资格 |
|---|---|---|
| 波音 BMS 8-223 | ||
| Class 5 Grade B Types 7, 27 | 1367G | 1368G |
请参阅当前资质的 PDS 以获取最新的数据表。
Gillfab® 1367 series are high strength, high impact and fire resistant fiberglass reinforced phenolic laminates for aircraft cargo liner
应用程序
| TGC 产品编号 | 不同之处 |
|---|---|
| Gillfab® 1367 | 冲击值略高于 1367A，并提供额外的厚度。 |
| Gillfab® 1367A | 具有标准重量和厚度要求的 1367 的经济替代品。 |
| Gillfab® 1367B | 比 1367A 更薄更轻。 |
| Gillfab® 1367C | 1367A 卷装。 |
| Gillfab® 1367E | 1367A，层压板的两面均采用 1mil 白色 PVF 粘合。 |
| Gillfab® 1367F | 1367A molded to a “Z” shape for wire spacing in cargo bay. |
| Gillfab® 1367G | 极薄、轻量且冲击强度优于相应类型。 |
| Gillfab® 1367M | 1367B 为卷状。 |
| Gillpatch® 1367P | 用于修复 1367A 饰面的贴片层压板。 |
以下测试按照 BMS 8-223 规范要求进行。
| TGC 部件号 | 1367G007 | 1367G027 | |
|---|---|---|---|
| 厚度，英寸（毫米） | 0.007 (0.18) | 0.026 (0.69) | |
| 重量，psf (kg/m2) | 0.067 (0.33) | 0.247 (1.20) | |
| 冲击强度，ft-lbs (Nm) | 18 (24) | 39 (53) | |
| 双点边缘轴承，磅 (N)，最大 | 经 | 202 (898) | 不适用 |
| 充满 | 200 (890) | 不适用 | |
| 易燃 | 符合 FAR 25.853 附录 F 第 I 部分 | ||
| 聚氟乙烯薄膜剥离分离，英寸 | PVF 薄膜无剥离 | ||
所示数字反映了典型值，不应用作设计规范。
当遵循推荐的预防措施时，本产品可以安全使用和应用。使用本产品前，请阅读并理解 安全数据表 (SDS)，其中提供有关健康、身体和环境危害、处理预防措施和急救建议的信息。仅供工业使用。离孩子远点。其他信息可在以下位置找到： www.thegillcorp.com.如需销售和订购信息，请致电 1-626-443-6094。
